Topology Diagram

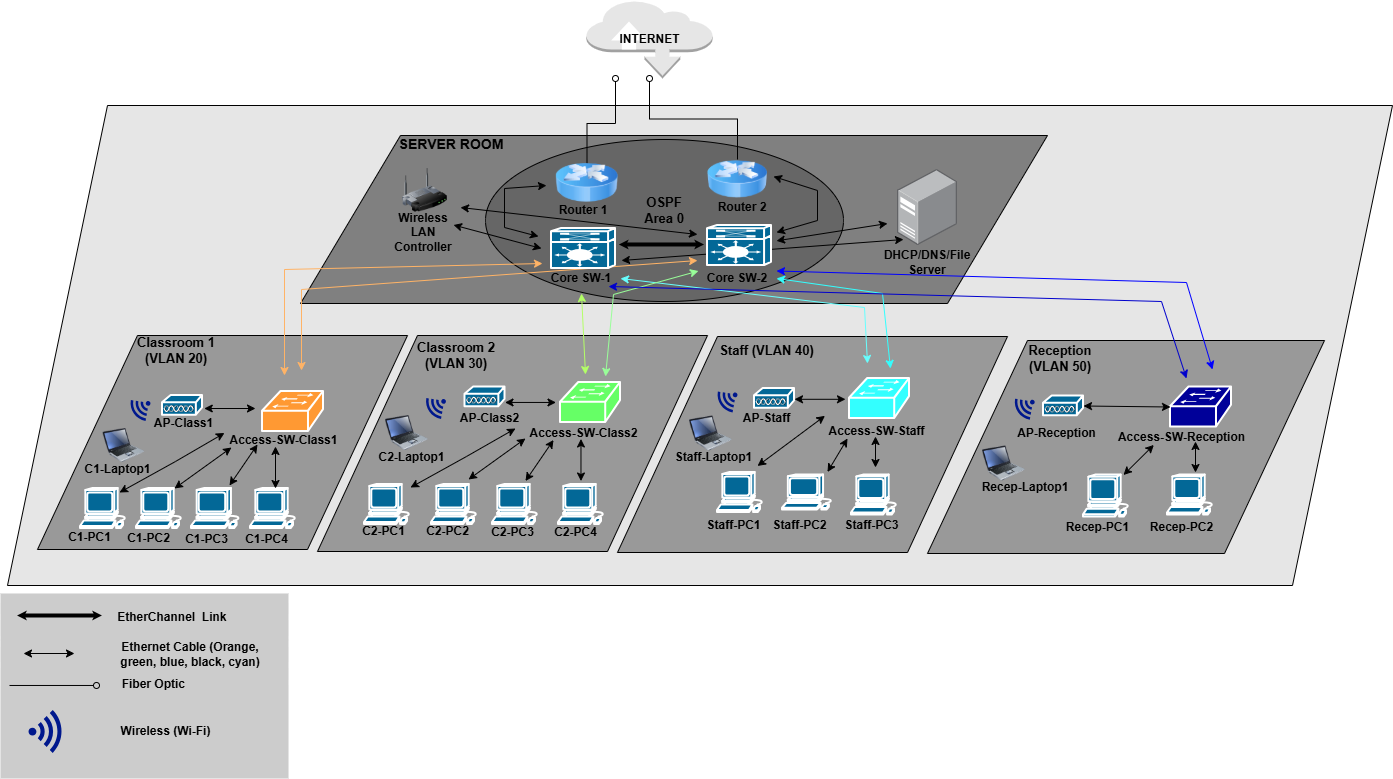

This diagram shows a two-tier architecture with dual routers using HSRP, Layer 3 core switches, EtherChannel links, and access layer switches.
Key Design
- HSRP for gateway redundancy
- OSPF for dynamic routing
- EtherChannel between core switches
- VLAN segmentation per department
