About This Project
This project demonstrates the design and implementation of a modern school network using a two-tier architecture. The network is built with redundancy, scalability, and security in mind.
It includes dual routers configured with HSRP for gateway redundancy, Layer 3 core switches for inter-VLAN routing, and access switches for end devices in different departments.
Network Technologies Used
- VLAN segmentation for departmental isolation
- HSRP for high availability of default gateway
- OSPF for dynamic routing across the network
- DHCP and DNS services for automatic configuration
- NAT for secure internet access
- EtherChannel for increased bandwidth and redundancy
Explore the Network Portal

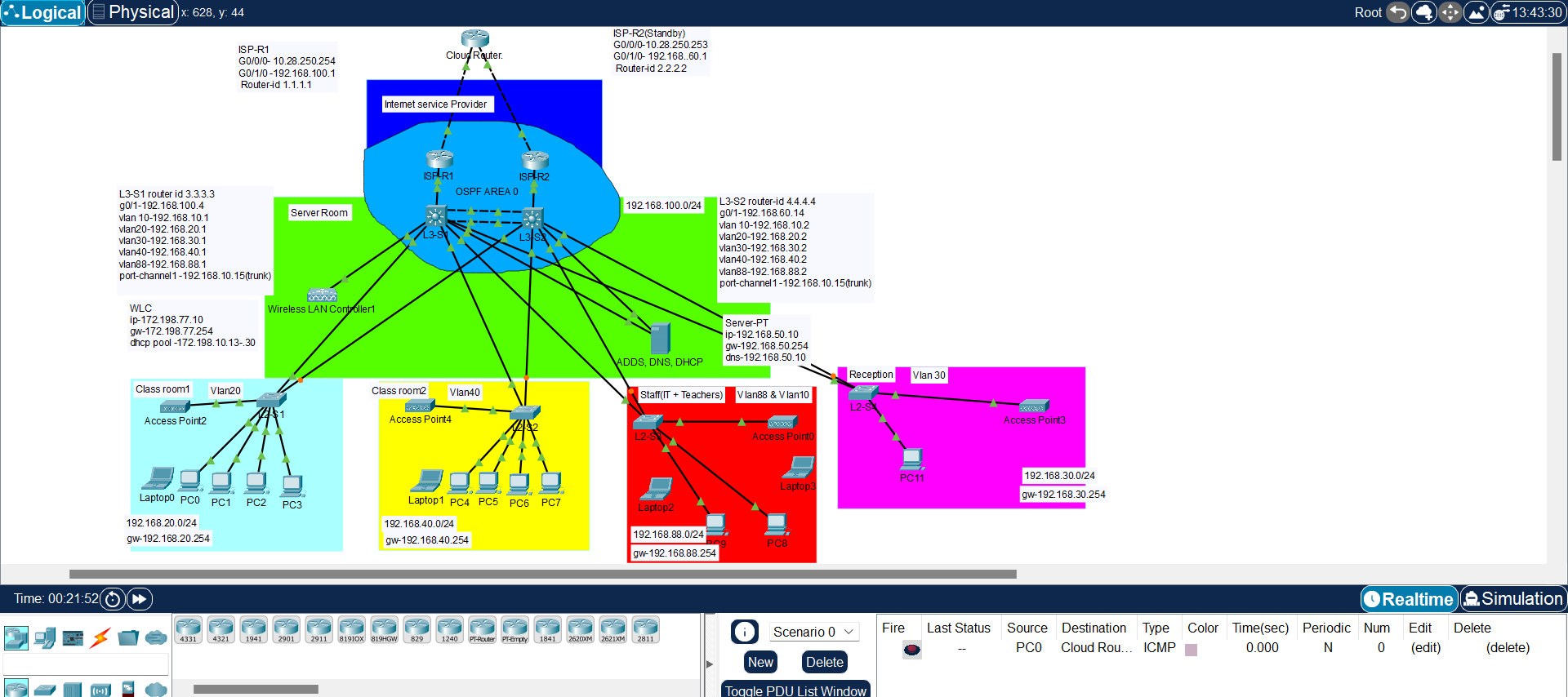

Navigate through the segmented pages to view departmental configurations, addressing schemas, and how the logical topology is designed for high availability.
